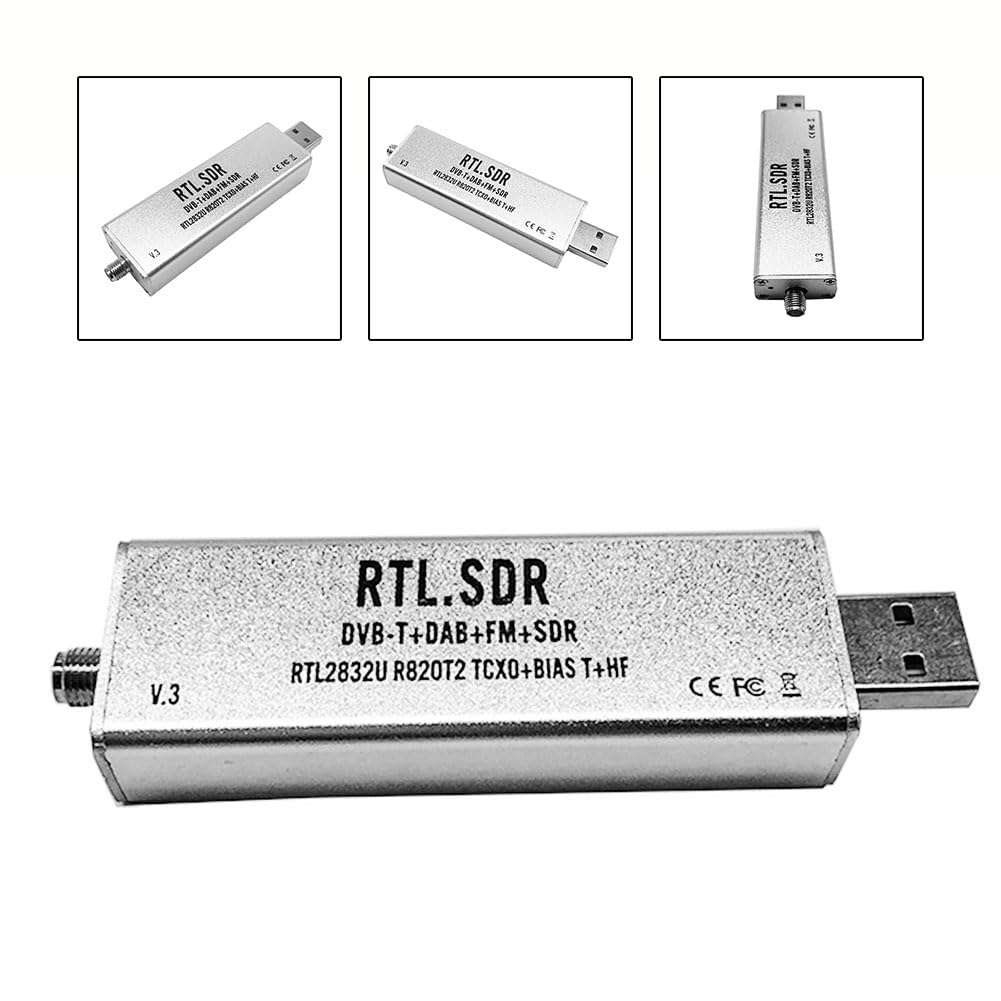

Wiring Connecting Terminals - RTLSDR Receiver Receiver Software Receiver TCXO Temperature Built-in 25MHz Compensated Full Bands Low-Pass Filter - (Style: A)

Describe:*The signal received by the antenna is converted into data through the receiver and sent to computers, mobile phones and other devices through the USB interface. Software on devices such as computers and mobile phones processes the demodulated signal, displays the spectrum, and sets up reception as desired. Bandwidth, signal recording, saving, playback and other functions. Receiving electromagnetic waves in the range of 100KHz-1.7GHz supports AM, FM (NFM, WFM), CW, DSB, LSB, and USB demodulation. It can be used for shortwave single sideband communications, FM broadcasts, intercom calls, aviation frequency bands, meteor monitoring ADS-B decoding, AIS signal reception, etc.Features:*The receiver has a built-in 1 ppm temperature compensation crystal (TCXO). Make the frequency more stable and accurate.*Near-zero temperature drift (2ppm initial deviation, 1ppm temperature drift) increases internal chip heat dissipation and makes the work more stable.*Adopt the latest RTL2832U+R820T2 solution (R820T2 tuner has slightly better sensitivity than R820T, lower background noise, and higher signal-to-noise ratio. It can work more stably at a frequency of about 1.5GHz.)*The Q channel on the RTL2832U is used to directly mine the reception of 100KHz-24MHz frequencies. Achieve full range reception from 100KHz to 1.7GHzSpecifications:*Frequency range: 24MHz-1766MHz*Chip: R820T2 RTL2832U chip*Compatibility: Compatible with r820t software*Socket: SMA socket*Temperature compensation: <1ppm temperature compensated oscillator*Heat dissipation method: aluminum shell passive heat dissipation*High frequency: experimental high frequency mode (500khz-24mhz)*Filtering: Built-in 25MHz low-pass filter*Requires USB connection: 2.0*Weight: 36gPackage includes:1XSDR receiverNotes:1. Due to various factors such as display brightness and

• Style: A
• Package Includes: 1XSDR receiver | Notes: | 1. Due to various factors such as display brightness and
• *The receiver has a built-in 1 ppm temperature compensation crystal (TCXO). Make the frequency more stable and accurate.
• *Near-zero temperature drift (2ppm initial deviation, 1ppm temperature drift) increases internal chip heat dissipation and makes the work more stable.
• *Adopt the latest RTL2832U+R820T2 solution (R820T2 tuner has slightly better sensitivity than R820T, lower background noise, and higher signal-to-noise ratio. It can work more stably at a frequency of about 1.5GHz.)
