SS3000 Monoblock 3000W RMS Amplifier

The newest amplifier in the Super Small Series, the SS3000, is a dual toroidal power supply, 3000 Watt monoblock. This hybrid type of amplifier circuit, combines elements of a full-bridge with high current amps for a compact, cost efficient, full-range monoblock that can serve as a building block for a variety of system designs, especially pro audio builds. The output section of this hybrid has been optimized to provide better sound quality in setups like stunt walls, where speakers in the mid / high range benefit from a low noise floor, while the power supply portion has been significantly beefed up for higher current to drive subwoofers to levels of forceful impact. The SS amplifiers quickly earned a reputation for big clean power from a small package. Their high speed, high current class D designs offer high power and superior sound quality in compact footprints. The classic DD AUDIO style heat sink provides max cooling thanks to 50% more side wall thickness than industry norms with extra long fins to increase surface area. As with all DD amps, all major components are name brands; use higher current mosfets and output devices, increased power capacitors, a more powerful transformer, plus improved venting and PCB with twice the thermal capability. These new high-end mini amps are state of the art, no compromise designs yielding the best sound with unparalleled power to size ratio. The transformation is physically tangible and audibly undeniable.

• Features 12dB/Oct High Pass 20Hz-80Hz 12dB/oct Low Pass 80Hz-20kHz Heavyweight DD Aluminum Chassis Set Screw Power and Speaker Terminals Remote Gain Control 0 AWG Power Terminals
• Specifications Operating Voltage: 9 - 16 Test Voltage: 14.4 Input Channel(s): 2 Output Channel(s): 1 Continuous Wattage @2ohm: 2200 Continuous Wattage @1ohm: 3000
• Max Current Draw (Amps): 300 RCA Input Voltage Sensitivity: 6 - 0.25 RCA Input S/N: >95 Damping Factor: >100 THD: <1.0

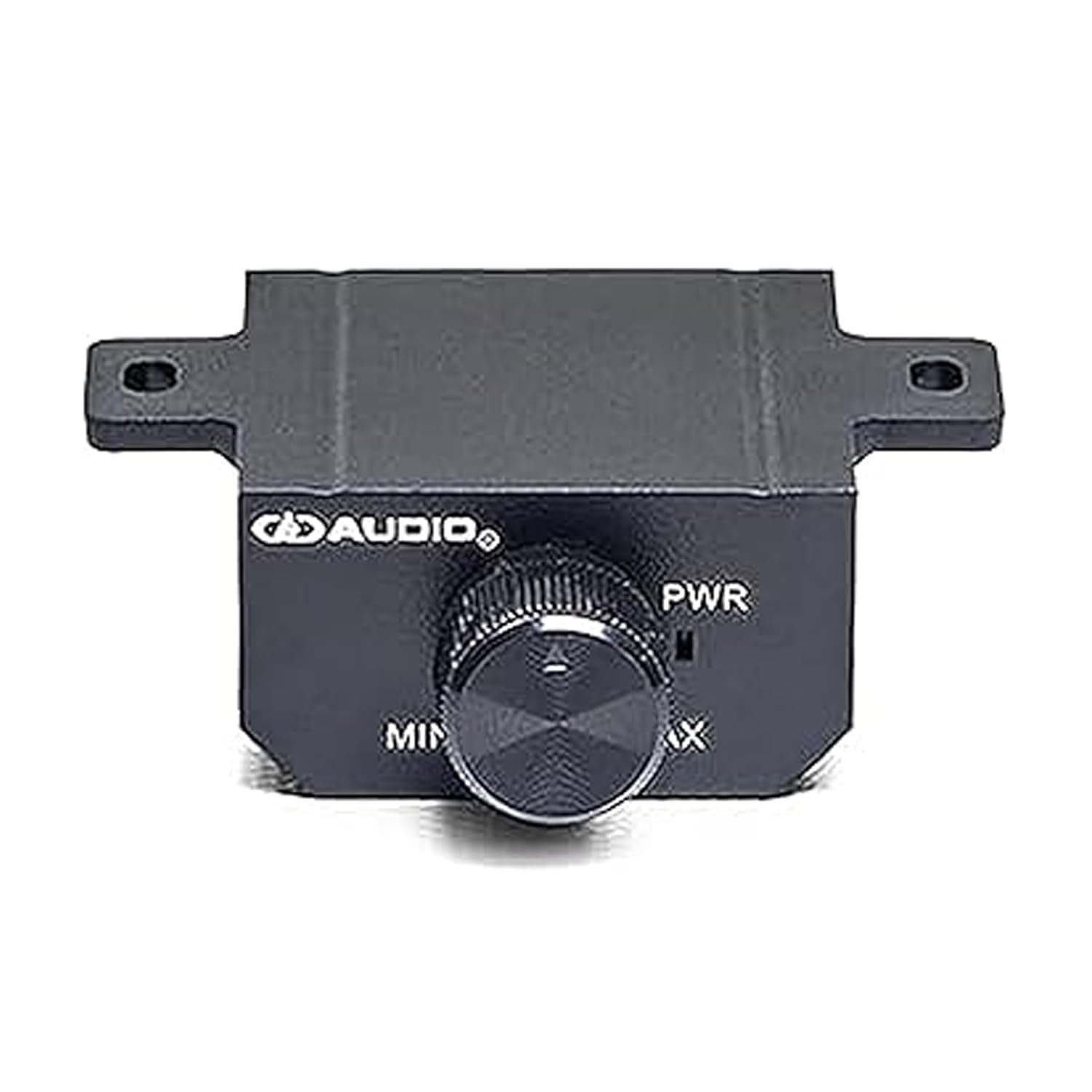

• Frequency Response (Hz): 20 - 20k Sub-Sonic Filter: 20 - 80 Low-Pass Filter: 80 - 20k Remote Control: Remote Included in Box Power Wire Gauge: 0 Speaker Wire Gauge: 4
• Dimensions (Inches): 8.7 x 7.3 x 2.4 Dimensions (MM): 221 x 185 x 60
