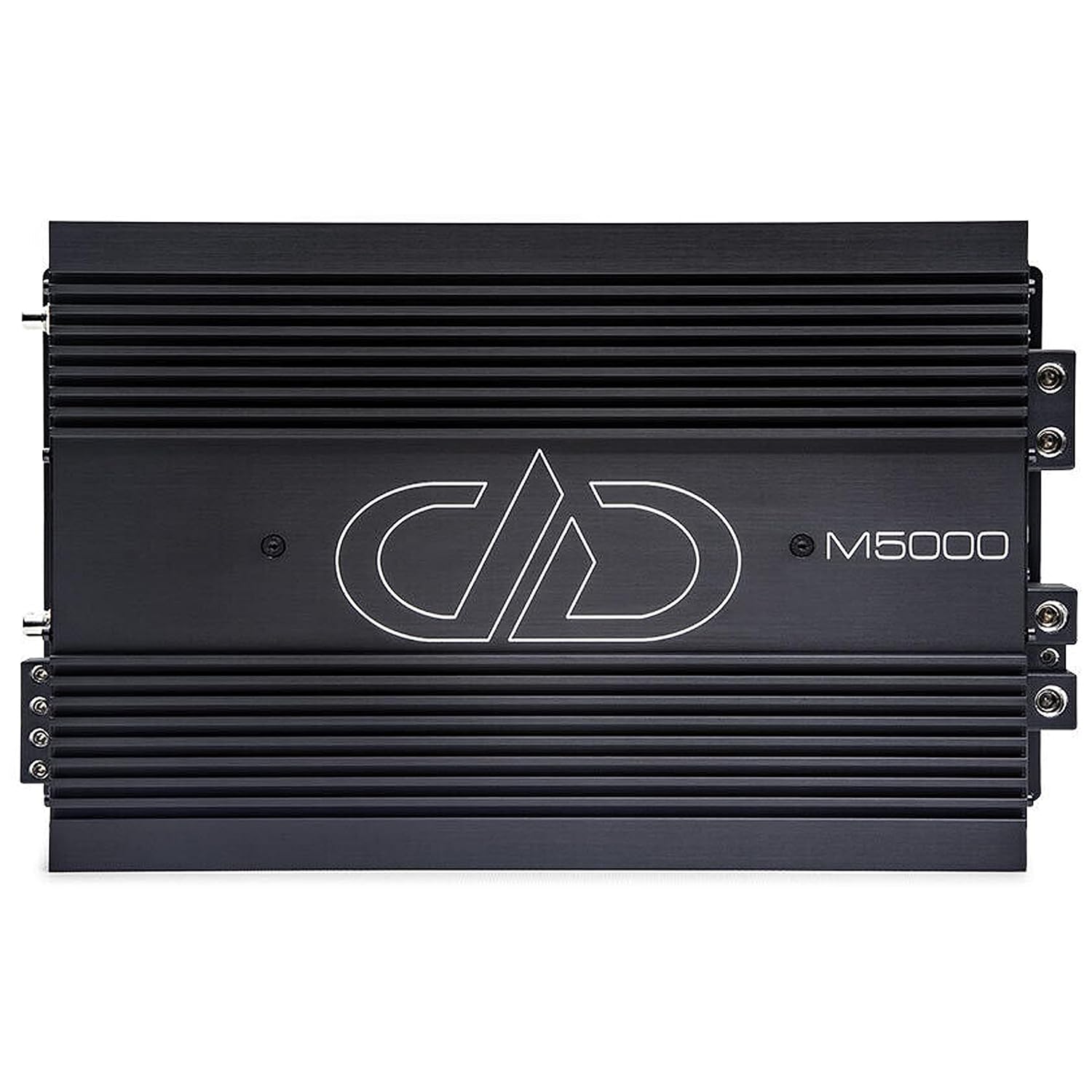

M5000 Monoblock 7,000W Amplifier

M5000 | DD Audio Digital Designs Monoblock 5000W RMS AmplifierFEATURES: Optimized Über High Current Power Supply Strappable Half Bridge Design ZVL Linking Module Input 24dB/Oct Bandpass Filters Custom Vanity Plate Ready Remote / LCD Voltage Display and Clipping Indicator 5000 Watts RMS Continuous Power SPECIFICATIONS: Operating Voltage: 9 - 16 Test Voltage: 14.4 Input Channel(s): 1 Continuous Wattage @4ohm: 1900 Continuous Wattage @2ohm: 3000 Continuous Wattage @1ohm: 5000 Dynamic Wattage: 7000 Max Current Draw (Amps): 700 RCA Input Voltage Sensitivity: 8 - 0.2 RCA Input S/N: > 97 Damping Factor: > 400 Frequency Response (Hz): 20 - 500 Sub-Sonic Filter: 20 - 250Hz Low-Pass Filter: 50 - 500Hz ZVL Input: Yes Pass Thru Output: No Remote Control: Remote Included in Box Power Wire Gauge: 2 x 0 Speaker Wire Gauge: 10 Dimensions (Inches): 13.4 x 9 x 2.6 Dimensions (MM): 340 x 230 x 66

• DD AUDIO continues to redefine the venerable M Series with revisions that greatly improve power and efficiency without increasing unit size. The M5000 incorporates the finest in ultra-high current devices and optimizes their usage with intelligent configuration to successfully maintain the modest footprint of its predecessor.
• Using design features borrowed from the award winning Z12000, the new M Series expands its operating voltage with improvements to the power supply, output section, and high efficiency heat sink, giving it a 16v max operation that takes full advantage of today’s lithium batteries. These enhancements allow the best power to footprint ratio to date!
• To further enhance performance, the M Series features new end panels, raising the amps off the mounting surface, allowing the internal fan to pull more air through the PCB even on carpeted or padded surfaces.
