Capacitor energy storage pulse welding machine, solid battery spot welding machine, 4.3KW high power 18650 lithium battery automatic spot welding machine pulse spot welding equipment

Input voltage: AC220V/110V±20VPower: 4.3 kWWelding current: 120 to 1200 A2 additional time: 1 to 10 ms4 additional time: 2 to 20 ms8 additional time: 8 to 80 msDimensions: 140 x 230 x 200 mmNet weight: 7 kgAdjustable distance of telescopic arm: 0.15 to 0.35 mmWelding strength of solid welding head: 0.05 to 0.25 mmWelding pin cable area: 16 mm2 Welding pin size: O1.5 mm x 7 mmAdjustable distance of welding pin: 2.7 mmTotal length of detachable welding pin: = 580 mmPackage includes:Battery spot welding machine set *1

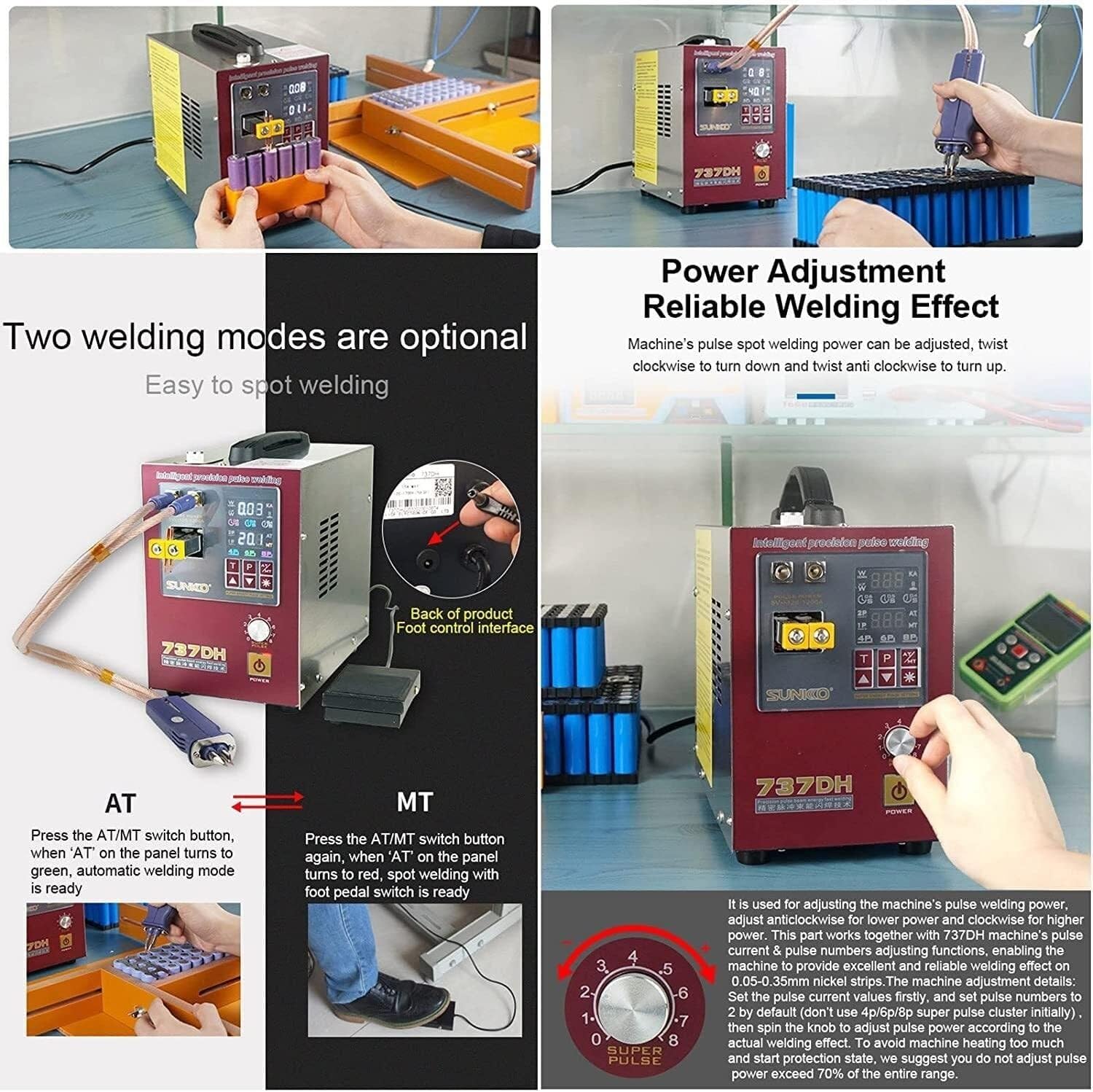

• Solid welding and welding rod: There are two modes: fixed welding spot and welding needle moving welding. When using a fixed welding head, the manual welding mode "MT" should be selected. Use a detachable welding needle to weld different parts, which is more customized and expands the working area and welding process of the spot welder.
• Delayed induction spot welding: Intelligent delayed spot welding machine, three different seconds buttons can be set according to needs, three seconds can be freely superimposed, up to three seconds at the same time, and the delay is 1.5 seconds, so as to achieve precise welding of each part.
• 8 groups of adjustable performance: 8-speed output mini cordless spot welding machine, one-button adjustable power, suitable for welding of different thicknesses. Designed with high-brightness LED lighting equipment, the spot welding process is clear at a glance, and precise spot welding can be performed even in low light.
• LCD screen, clear reading: This portable spot welder is equipped with an easy-to-read screen, allowing you to easily monitor welding problems, track and control the number of pulses and actual current. 4 pulses, 6 pulses and 8 pulses are superimposed, up to 18 (maximum)
• Click MT welding switch: The battery welding machine is equipped with a 70-BN welding needle and a foot pedal. Whether you are a professional or a beginner, you can find a spot welding method that suits you. When welding in "MT" mode, connect a foot switch to the spot welder to control the welding. We recommend AT mode for beginners.
